BK TECHNOLOGIES
KNG-B150LP Watt, Digital Base Station
KNG-B150LP Watt, Digital Base Station
Regular price
$5,730.00 USD
Regular price
Sale price
$5,730.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
(Call for discounted price)
KNG-B 50 Watt, Digital Base Station. VHF

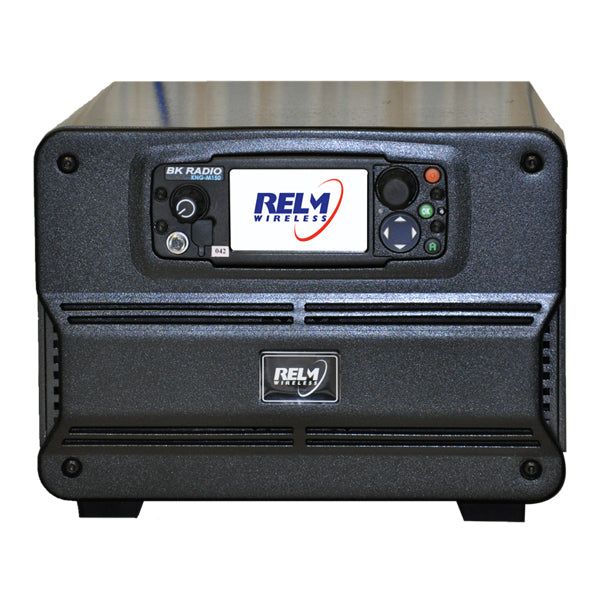

Take a look at the KNG Series Base Station, with it's industry first base station radio with a touch screen display. The KNG Series Base Station is loaded with features in a standard size package for both mid and high power applications. Offered in four frequency bands and two power options, 50 or 100 watt, the KNG Series Base Station is smart and easy to customize to fit your everyday needs.
- KNG-B150 VHF 136 174 MHZ
Standard Features
- 5000 Channels, Dynamic Zones, Custom-tailored user zones
- USB or Mobile Programmability, Program out in the field in minutes
- Mixed-mode Operation, Analog or digital communication
- Talk Around, Bypass or talk around a repeater
- Channel/Priority/Group Scan, Scan channel, priority channel, or scan by zones
- Custom Menu System, Customize intuitive menu to fit your everyday needs.
- MIL-STD 810 C/D/E/F/G, Meets or exceeds military requirement
- Text Messaging, Text Messages sent radio-to-radio or repeated through fixed network equipment and confirmed received
- Alpha-numeric Touch Screen Display, Color TFT touch screen
- Small Package High and Mid Power, (VHF ONLY) Optional Hi power same size package
- Birdie Free, No blacked out frequencies
- 256 Programmable Quick Call IDs, Connect with select radio users easy and fast
- Busy Channel Selections, prevent other radio communications and interference
- Problem Prevention Features, Keypad lock prevents accidental change or activate of functions
- DVSI AMBE+2 Version 1.60 Vocoder, Improved RF performance in degraded signal conditions and provides enhanced audio signal conditioning
- Emergency Signaling, Supports emergency calls and alarms
Options
- High Power (110 Watt), Further the range of Base, VHF ONLY
- Remote Head, Fully functional touch screen Base Station face
- GPS, Longitude and Latitude coordinates
- P25 Trunking, 9600 Baud Trunking
- OTAR, Over-the-air re-keying
- Wireless Tactical OTAR, Upgrade encryption keys wirelessly
- OTAP, Over-the-air-programming
- Multicast Vote Scan, scans all voted channels, selects the channel with best signal.
- AES/DES/OFB Encryption, NIST certified, validated FIPS 140-2 Type III encryption with a 256 key load.
KNG Base Station PDF KNG Base Station Button Guide KNG Base User's Manual
GENERAL* |
|
| FREQUENCY RANGE | 136 174 MHZ |
| CHANNELS | 5000 |
| ZONES (UP TO) | 5000 |
| OPERATING VOLTAGE | 12 VDC (NOMINAL), NEGATIVE GROUND |
| CHANNEL SPACING | 12.5/25 AND 15/30 KHZ |
| CHANNEL INCREMENTS | 1.25/3.125 KHZ |
| OPERATING TEMPERATURE | -30 °C TO +60 °C |
| DIMENSIONS (W X D X H) | 7.25 X 9.25 X 2.25 |
| WEIGHT W/ BATTERY | 6.5 LBS. |
| STANDBY CURRENT DRAW | 150 MA |
RECEIVER* |
|
| SENSITIVITY | -121 DBM |
| P25 SENSITIVITY: 5% BER | -121 DBM |
| ADJACENT CHANNEL REJECTION | 80 (70) DB |
| P25 ADJACENT CHANNEL REJECTION | 60 DB |
| SPURIOUS AND IMAGES | 80 DB |
| INTERMODULATION REJECTION | 78 DB |
| AUDIO DISTORTION AT 5W | 2 % |
| CURRENT DRAW | 2A |
TRANSMITTER* |
|
| RF POWER (WATTS) | 10 50 50 100 |
| FREQUENCY STABILITY | 1.5 PPM |
| AUDIO DISTORTION | 3 % |
| FM HUM AND NOISE | 50 (45) DB |
| SPURIOUS AND HARMONICS | 75 DB |
| CURRENT DRAW | 15 A 25 A |
| EMISSION DESIGNATORS |
11K0F3E, 16K0F1E, 8K0F3E, 8K0F1E |
*Specifications are for VHF(UHF, 700/800 vary slightly) *
